| MOQ: | 1 set |
| ราคา: | Based on customization. |
| การบรรจุแบบมาตรฐาน: | Industrial plastic film wrapping, secured with steel wire. |
| ระยะเวลาการจัดส่ง: | 30 days |
| วิธีการจ่ายเงิน: | L/C,T/T |
| ความสามารถในการจัดหา: | 30 sets per month |

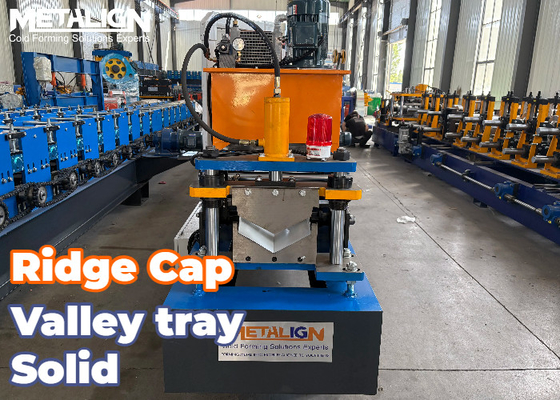

This ridge cap roll forming line is designed for small to mid-sized roofing manufacturers focusing on galvanized and pre-painted metal profiles. Its cost-effective setup, safety-oriented profile, and stable forming process make it ideal for residential and light steel building markets worldwide.
The metal ridge cap is made from galvanized or pre-painted steel sheets, with thickness between 0.3–0.6mm. The profile features symmetrical raised peaks and folded edges for water protection and installer safety. It's mainly used in metal roof systems as a joint cover at the ridge section.
Flow Chart:
Manual Decoiler → Entry Guide → Roll Former → Hydraulic Cutter → Out Table
Process:
Steel coil is manually loaded and guided into the roll forming unit, where the sheet passes through 17 forming stations to achieve its final shape with folded edges. After shaping, a hydraulic cutter ensures precise cutting to length. The formed ridge cap is then collected on the output table.
| Machine | Analysis |
| Manual Decoiler | Holds and manually expands the steel coil |
| Cost-saving option for low production volumes | |
| Entry Guide | Aligns the strip before entering the forming rollers |
| Prevents side shift and ensures consistent profile quality | |
| Roll Former | Main forming section with 17 stations |
| Chain-driven system suitable for 0.3–0.6mm steel | |
| Wall panel frame offers good rigidity with lower cost | |
| Accurate forming of safety-folded ridge profile | |
| Hydraulic Cutter | Cuts the profile to preset lengths |
| Uses hydraulic power for smooth and clean cuts | |
| Out Table | Collects the finished ridge cap after cutting |
| Simple design for manual handling and packaging |
| Machine Name | Quantity |
| Manual Decoiler | 1 set |
| Roll Former | 1 set |
| Hydraulic Cutter | 1 set |
| Out Table | 2 sets |
| PLC Cabinet | 1 set |
| Hydraulic Station | 1 set |
For this specific ridge cap profile, we offer customization in coil width, profile height, and edge fold dimensions. The roll former can be adjusted to produce different ridge cap lengths. Decoiler type, drive system, and cutting method (stop-cut or flying-cut) can be tailored based on customer needs and productivity targets.
